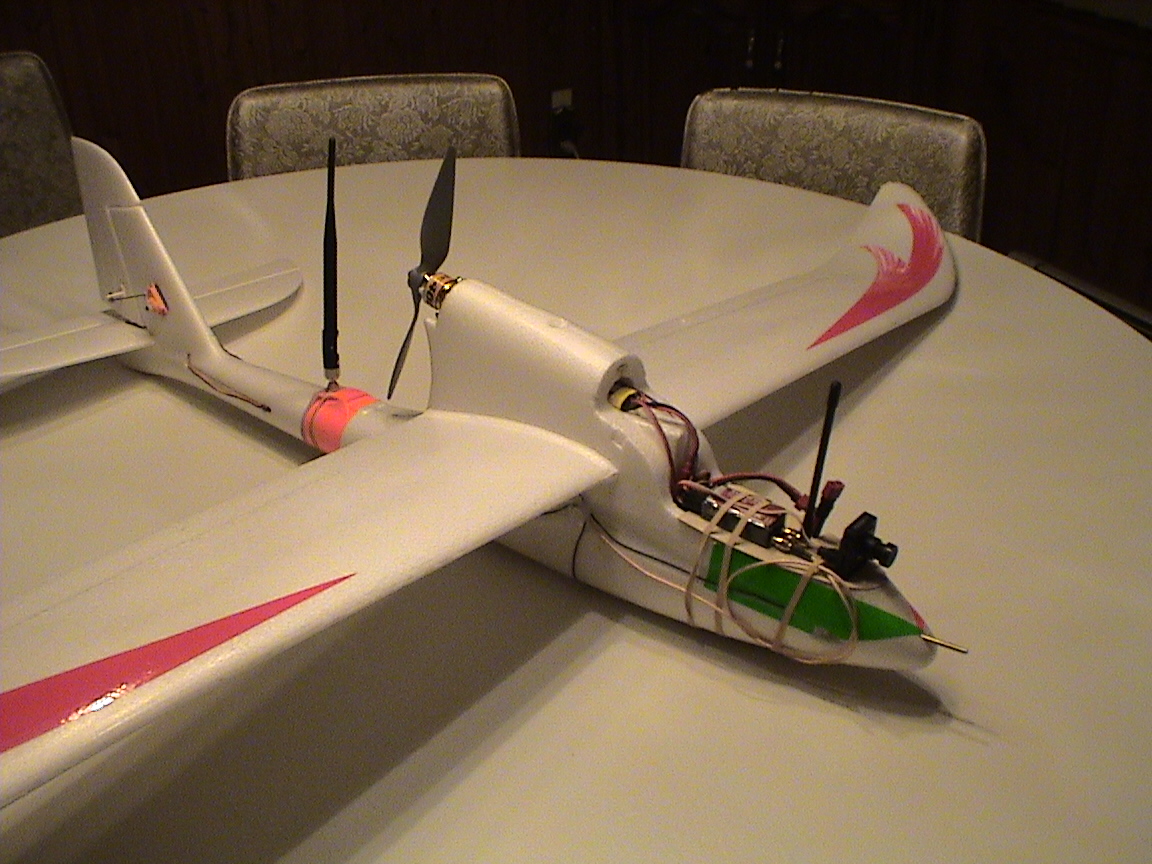

The aircraft is the EagleWing from Skywalker. It has a wingspan of 1500 mm and a wing loading of 33 oz.
The powerplant is a Rimfire 28-30-950 KV motor with a 9-6 prop. The primary system battery is a 2200 mAH 3S LiPo at 11.1 Volts.
Uplink control is using the 70 cm band while the video and telemetry downlink is using the 33 cm band. The diversity receiver uses both a loaded vertical antenna and a dual dipole with circular polarization. The transmitting antenna is a loaded vertical.

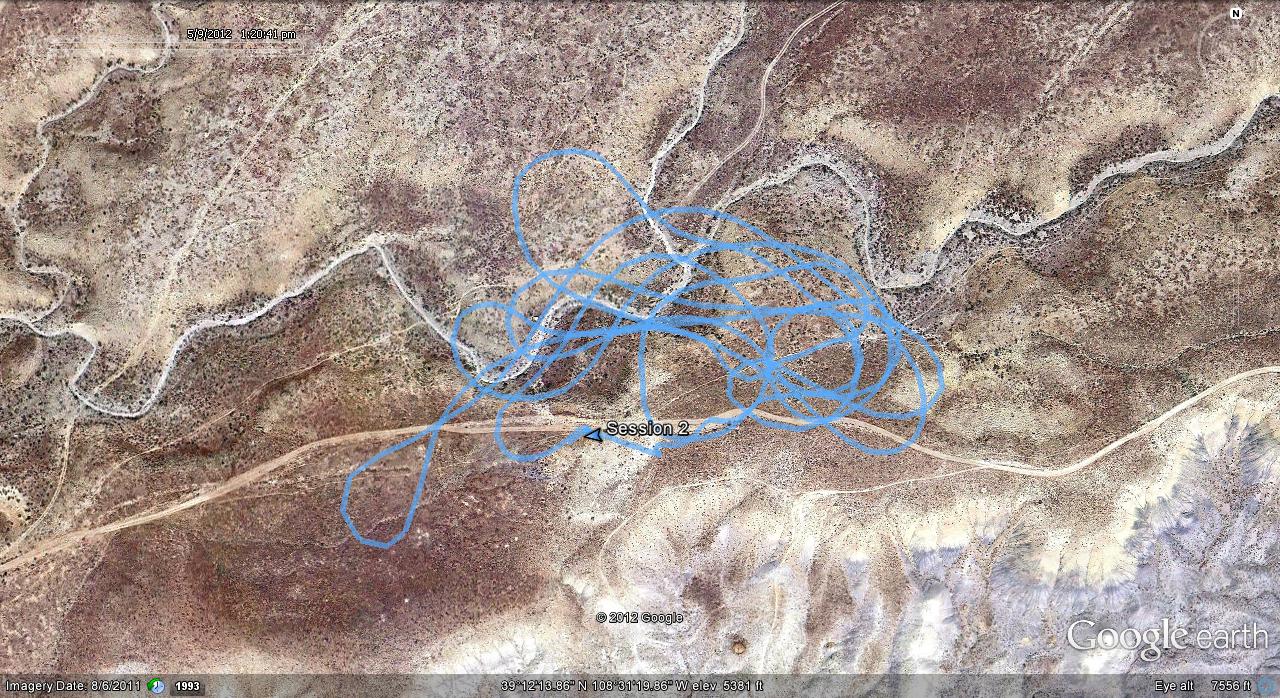

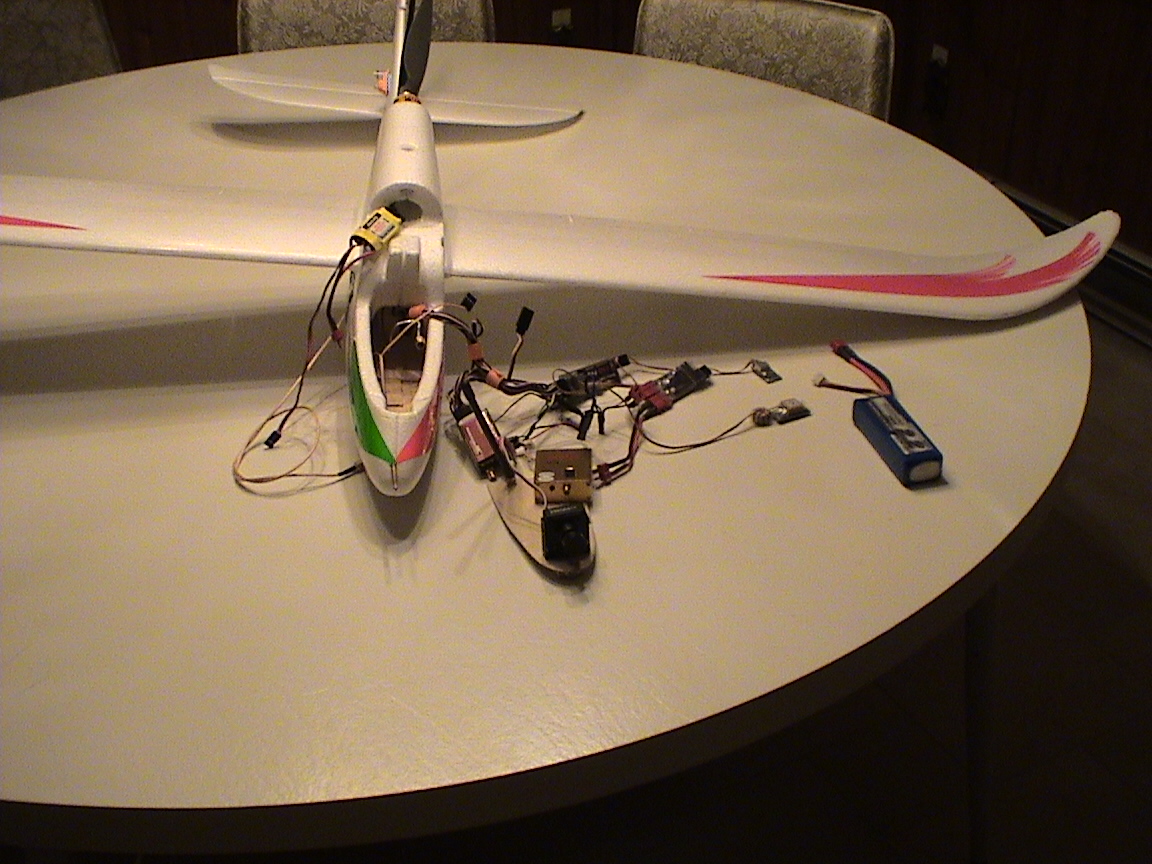

The sensor array includes airspeed, altimeter, 3 axis g force, GPS and a stabilization module that provides the artificial horizon for the OSD. The other two modules are the OSD (On Screen Display) and the data logger, which also measures the battery voltage and current as well as logging all of data for later analysis. The GPS flight path can be projected onto Google Earth in real time.
